Corrugated Sheets Counter
High-precision corrugated sheets counter machines can deliver exponential efficiency gains for printing plants, and particularly for carton manufacturing facilities. By utilizing highly accurate, sensitive industrial vision cameras to precisely count stacks of corrugated board—and by aligning inventory with demand—these systems enhance warehouse operational efficiency and reduce waste.
Brief Introduction

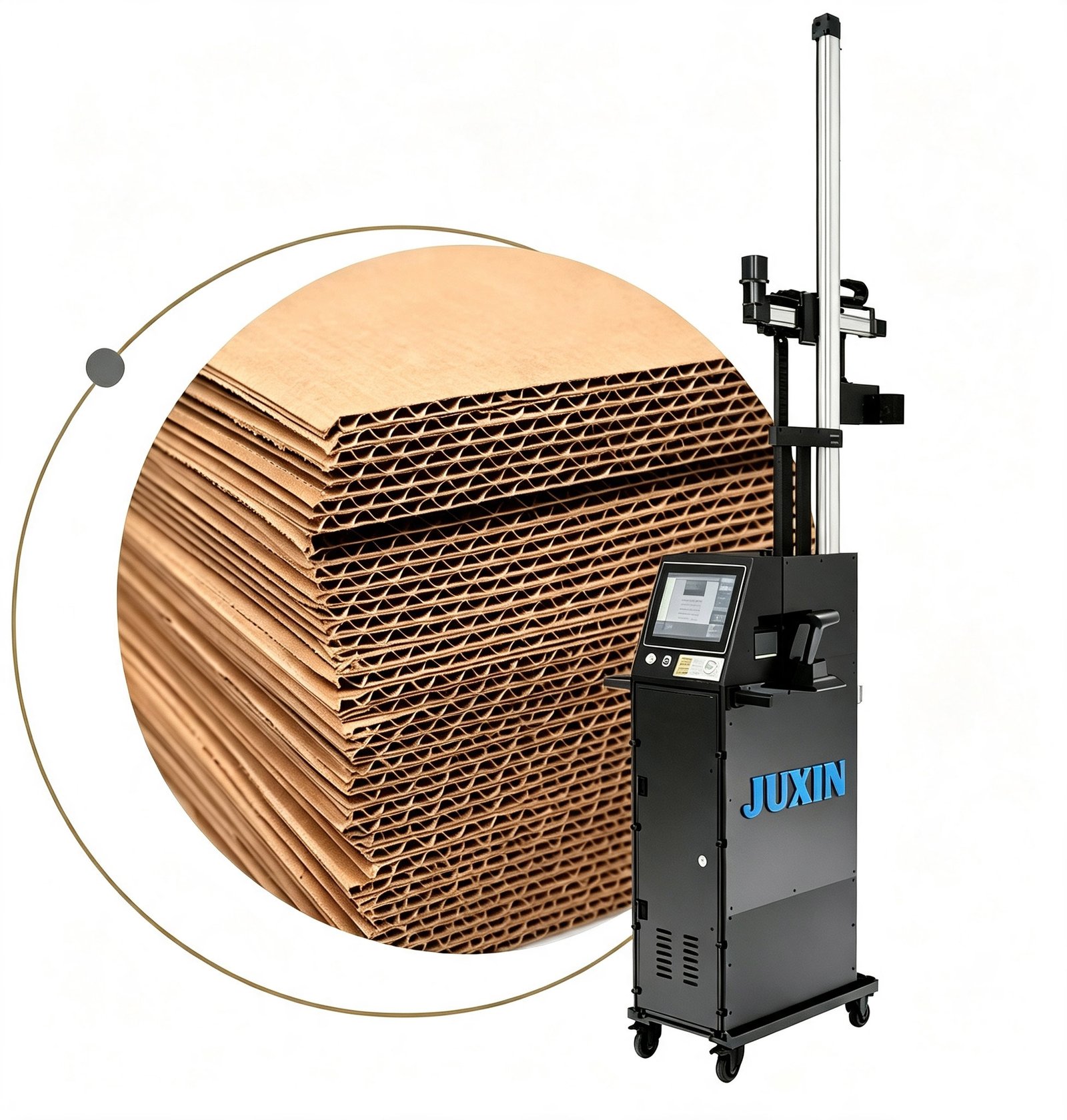

This counter machine is self developed by Hawkvis for counting the quantity of corrugated sheet boards in stack. It adopts industrial CCD camera to scan the corrugated side of the stack, recognize the flutes and count the numbers based on our deep learning powered algorithms.
Main Specifications
| Item | Parameter | |
| Model No. | HVCM-2300H | HVCM-2300HB |
| Power Supply Type | AC110-240V,50/60Hz | Lithium Battery | AC110-240V, 50/60Hz |
| Dimensions (mm) | 2849*860*576mm | |
| Maximum countable height (mm) | 2300 | |
| Focal Length(mm) | 500 | |
| Counting Accuracy | >99.99% | |
| Cycle time (s) | 6 sec./cycle | |
| Hawkvis Counting software | V1.3 | |
| Anti-Misalignment | +100mm (provided all boards are flat and not blocking others) | |
| Function Features | Touch screen | Wireless barcode scanner | Label printer | Voice broadcast | |
| Rated Power (W) | 300 | |
| Enclosure material | Stainless steel | |
| Weight (Kg) | 90Kg | 110 Kg |
| Work environment | Temperature:-10℃~40℃,Humidity:30%~95% | |
Industry’s Pain points
- Corrugated sheet boards are sold based on quantity, so accurate number is essential.
- Quantity discrepancy can happen during production, warehousing and transportation which is hard to trace and producers have to take the loss.
- The critical point is that it is too difficult to count the numbers by human.

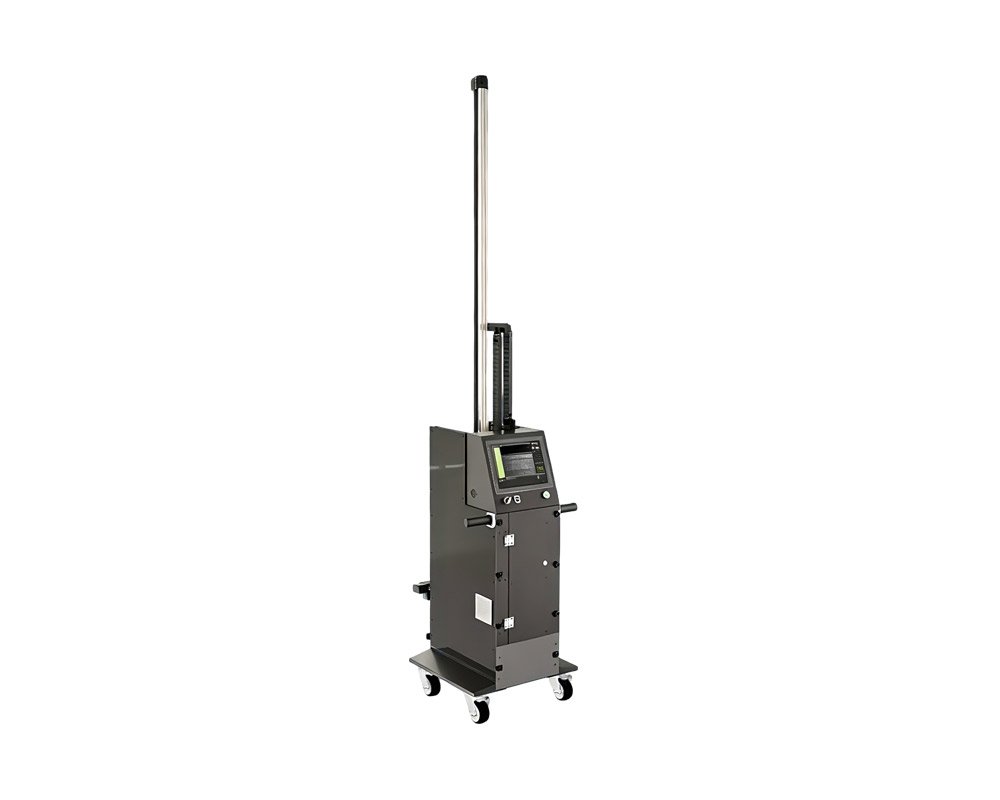

Machine Appearance
Software Features

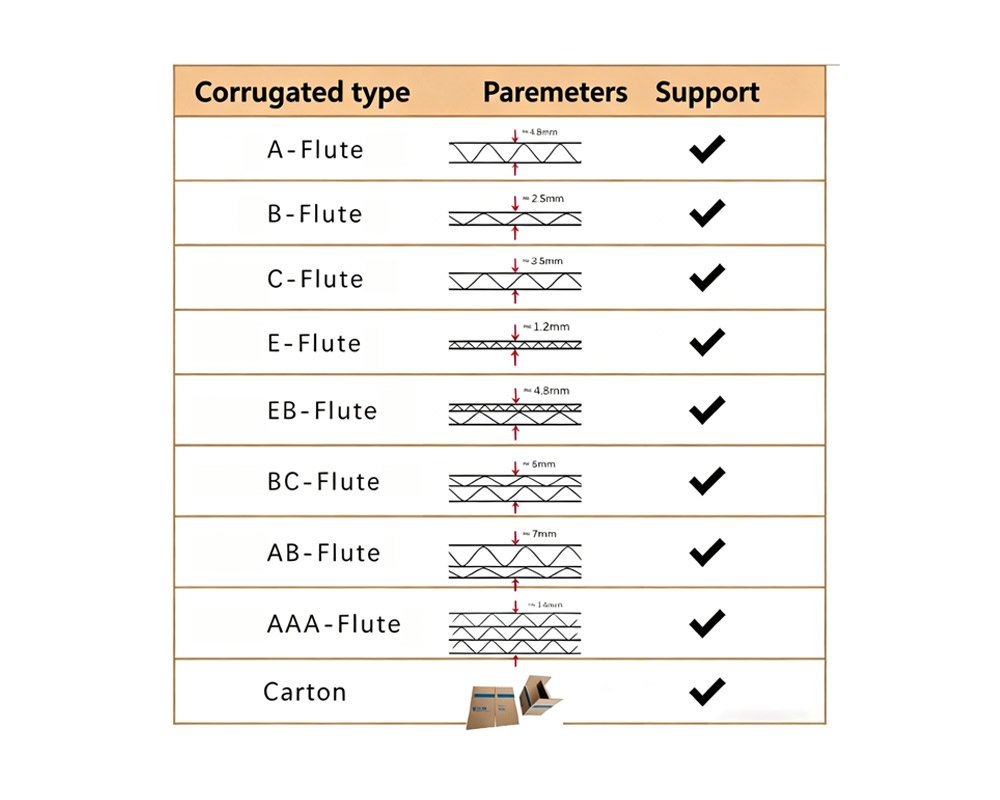

Applicable board types
