Portable Spectrophotometer DS-700D

Model: DS-700D


Model:  Spectrophotometer DS-700D
Geometry:   d/8, SCI+SCE(diffused illumination,8° viewing, Specular Component Included,
Specular Component Excluded)
Sensor:  Dual optical path high precise CMOS array sensor
Spectroscopic method:  Grating spectroscopy
Sphere Size:  Φ 40mm
Wavelength Range:  400-700nm
Wavelength Interval:   10nm
Reflectance Range:   0-200%, resolution 0.01%
Light Source:   LED(Full wavelength balanced LED) + UV
Measurement:   Time About 1.5s
Illumination Area/Aperture:   3 Apertures: MAV:Φ8mm/Φ11mm, SAV:Φ4mm/Φ6mm, MINI:1*3mm
Repeatability:    Standard deviation within ΔE*ab ≤ 0.025 (when a white tile is measured 30 times at 5-seconds interval with MAV)
Inter-instrument agreement:   ΔE*ab<0.25  (BCRA Series Ⅱ, average measurement of 12 tiles)
Language:    English and Chinese
Display Resolution:    0.01
Observer Angles :   2°,10°
Illuminants:   A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30, U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2, LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2Color Spaces and Indices:   Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color
difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM
E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM
D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness,
Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity,Color strength

Storage:    APP Mass Storage 100 pcs of target from instrument

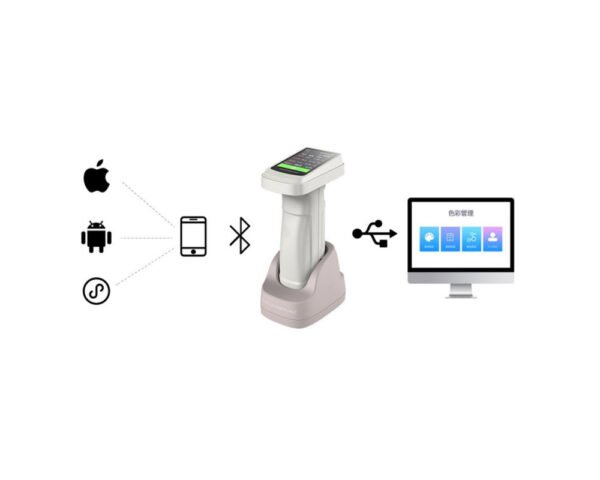

Interface:    USB, Bluetooth
Battery Rechargeable, 8000 times continuous tests, 3.7V/3000mAh
Camera to see the measurement area:   Yes
Calibration:    Intelligent auto calibration
Software:     Android, IOS, Windows
Accuracy:    Metrology Level I
Standards:    Conform to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Screen:    IPS Full Color Screen, 3.5 inches
Light Source Lifetime:   10 years, 1 million test

Product Advantage:

  • Excellent repeatability and inter-instrument agreement
  • Dual optical path high precise CMOS array sensor
  • Intelligent auto calibration, white tile is made by ZrO2 with reflectance more than 90%, no
    need for frequent white calibration
  • 360-700nm Full Wavelength Balanced LED+UV
  • 10nm Resolution Grating Spectroscopy Technology

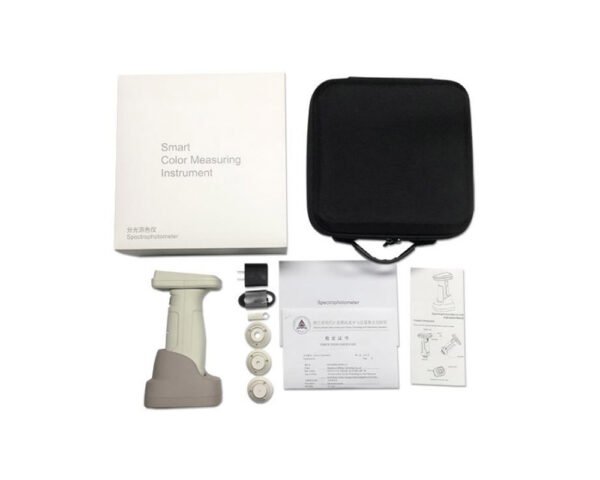

  • Three aperture as standard accessories, no tools are needed and apertures can be replaced
    at any time to meet different sample measurement requirements
  • More than 30 kinds of color indices and 37 kinds of illuminants
  • It supports Android, IOS and Windows program
  • It is with the camera to see the measurement area clearly
